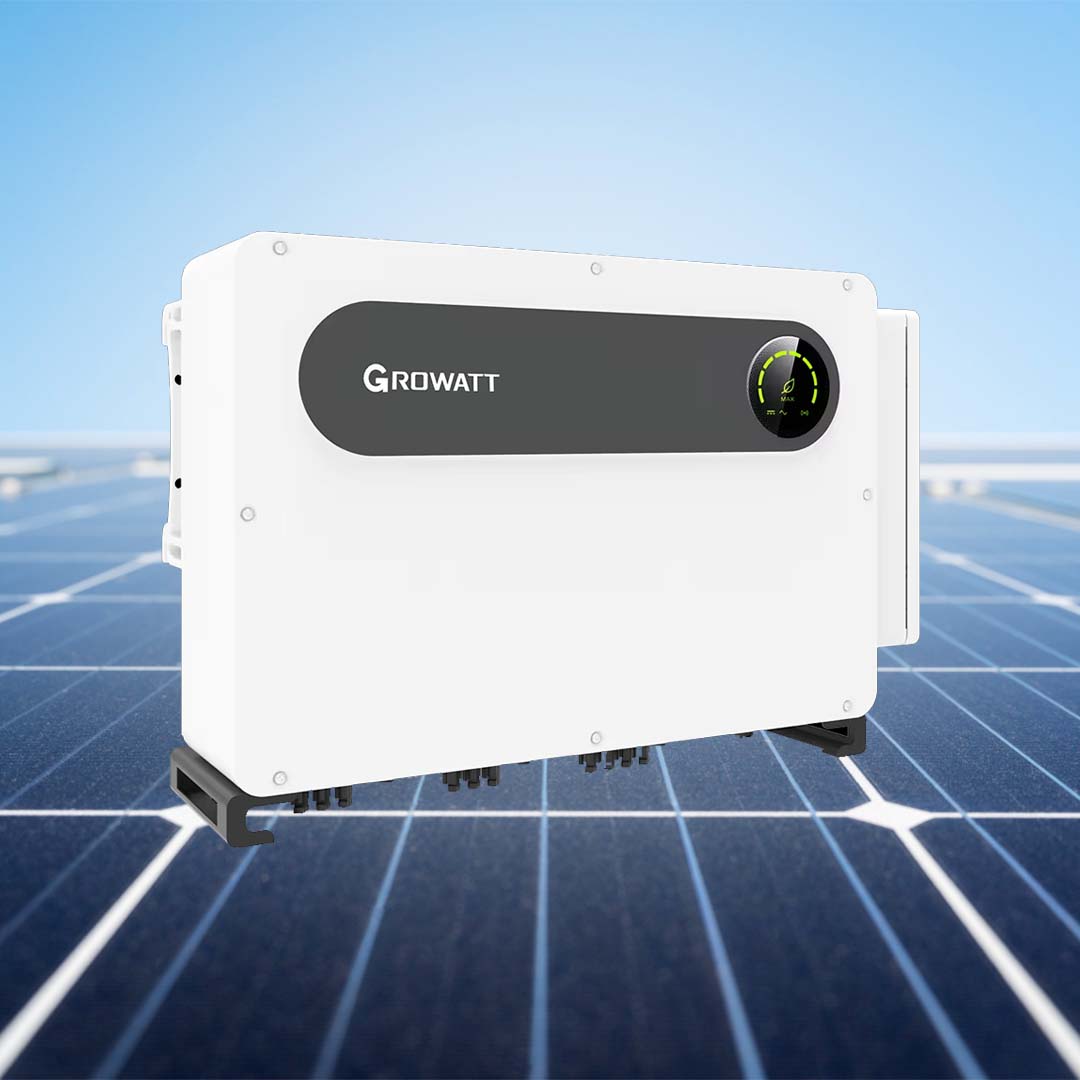

Growatt MAX 100 KTL3 LV | 100~KW 3-Phase On-Grid industrial Solar inverter

Description:

The Growatt MAX 100 KTL3 LV is a three-phase solar inverter tailored for both residential and commercial applications. It plays a crucial role in converting
the direct current (DC) generated by solar panels into alternating current (AC), which is used to power homes and businesses. Known for its high efficiency,
this inverter maximizes the power output of solar panels even under challenging conditions such as shading, dust, or extreme temperatures. It incorporates
advanced MPPT (Maximum Power Point Tracking) technology, which continually adjusts the electrical load to optimize energy production from the solar panels.

Additionally, the Growatt MAX features a built-in data logger and WiFi connectivity, allowing users to monitor and manage their solar system’s performance
remotely via a smartphone app or web portal. This app provides real-time and historical data, including energy production, consumption, and savings, helping
users better understand and optimize their energy usage. The inverter’s compact and lightweight design ensures easy installation and maintenance, while its
high-quality construction guarantees durability and longevity.

Key Features:

*Maximum efficiency up to 99%
*6/7 MPPTs
*Type II SPD on both DC and AC sides
*Optional Anti-PID function
*Optional AFCI function
*IP65 protection rating
*Comprehensive warranty plan
*10-year warranty

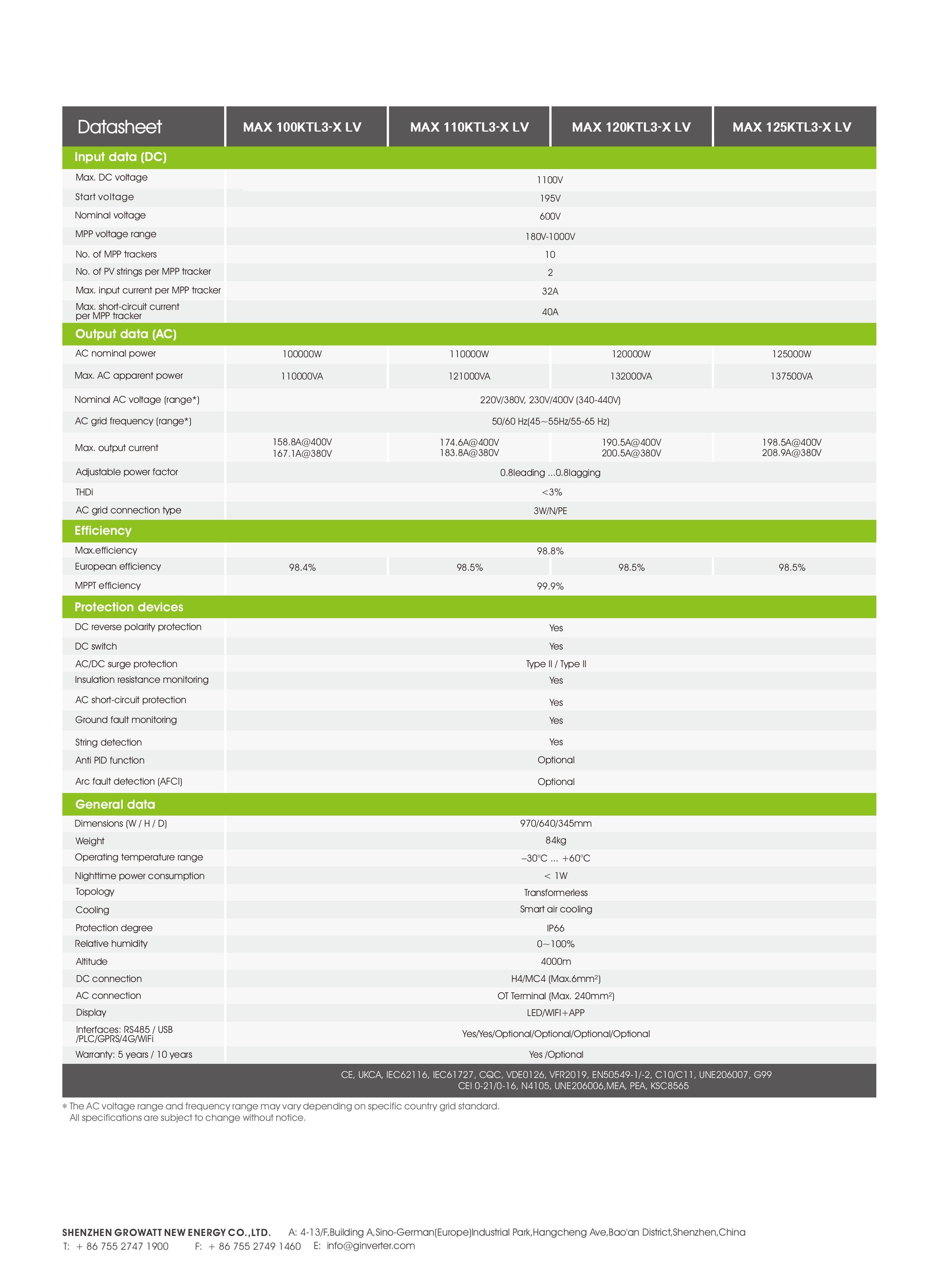

Specifications:

*Nominal Voltage: 600V
*Maximum DC Voltage: 1100V
*AC Nominal Power: 100000W
*Maximum Output Current: 158.8A
*Dimensions (W/H/D): 970/640/345 mm
*Maximum Efficiency: 98.4%
*Protection Degree: IP66
*Interfaces: RS485 / USB / PLC / GPRS / 4G / WiFi
*Cooling: Smart air cooling
*Topology: Transformerless
