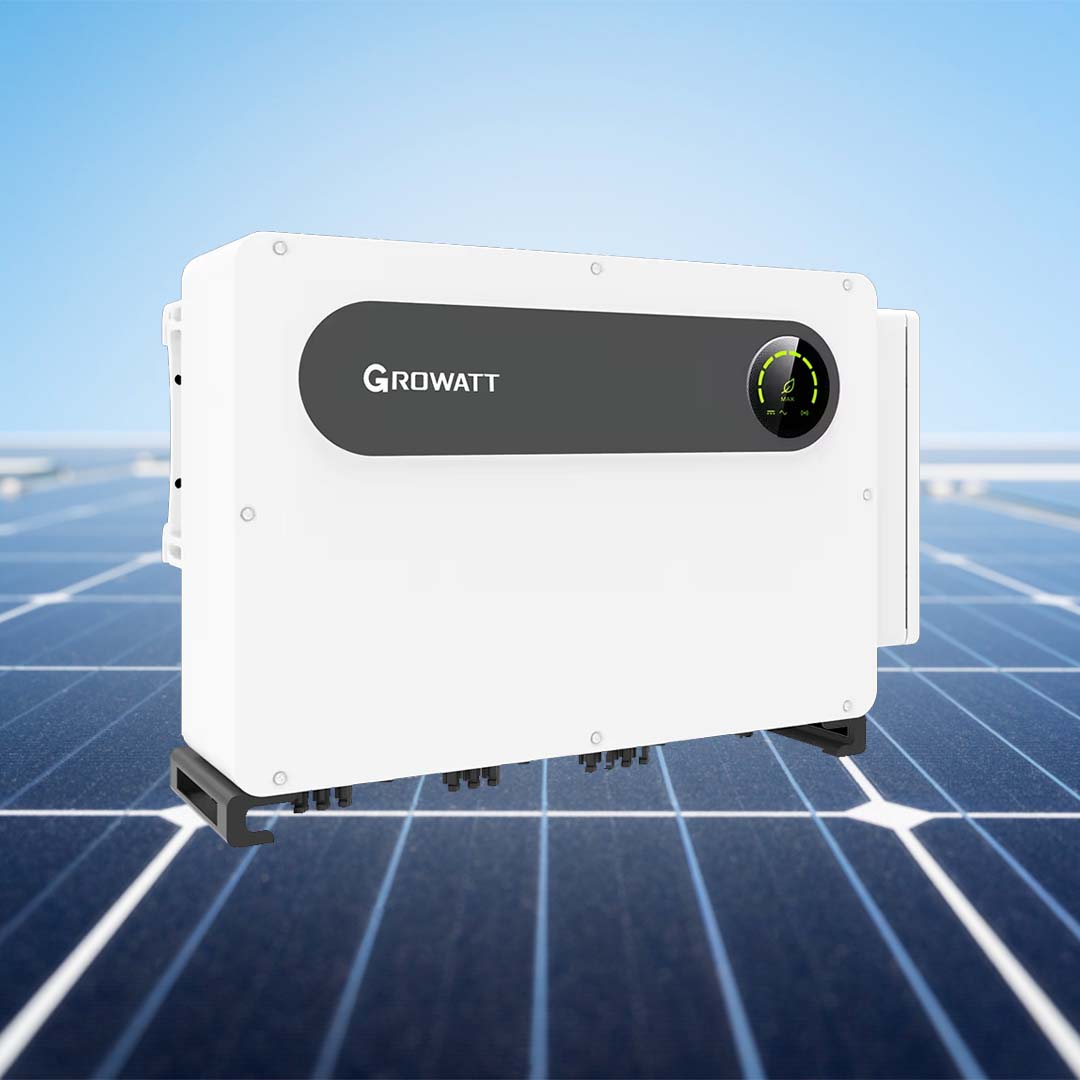

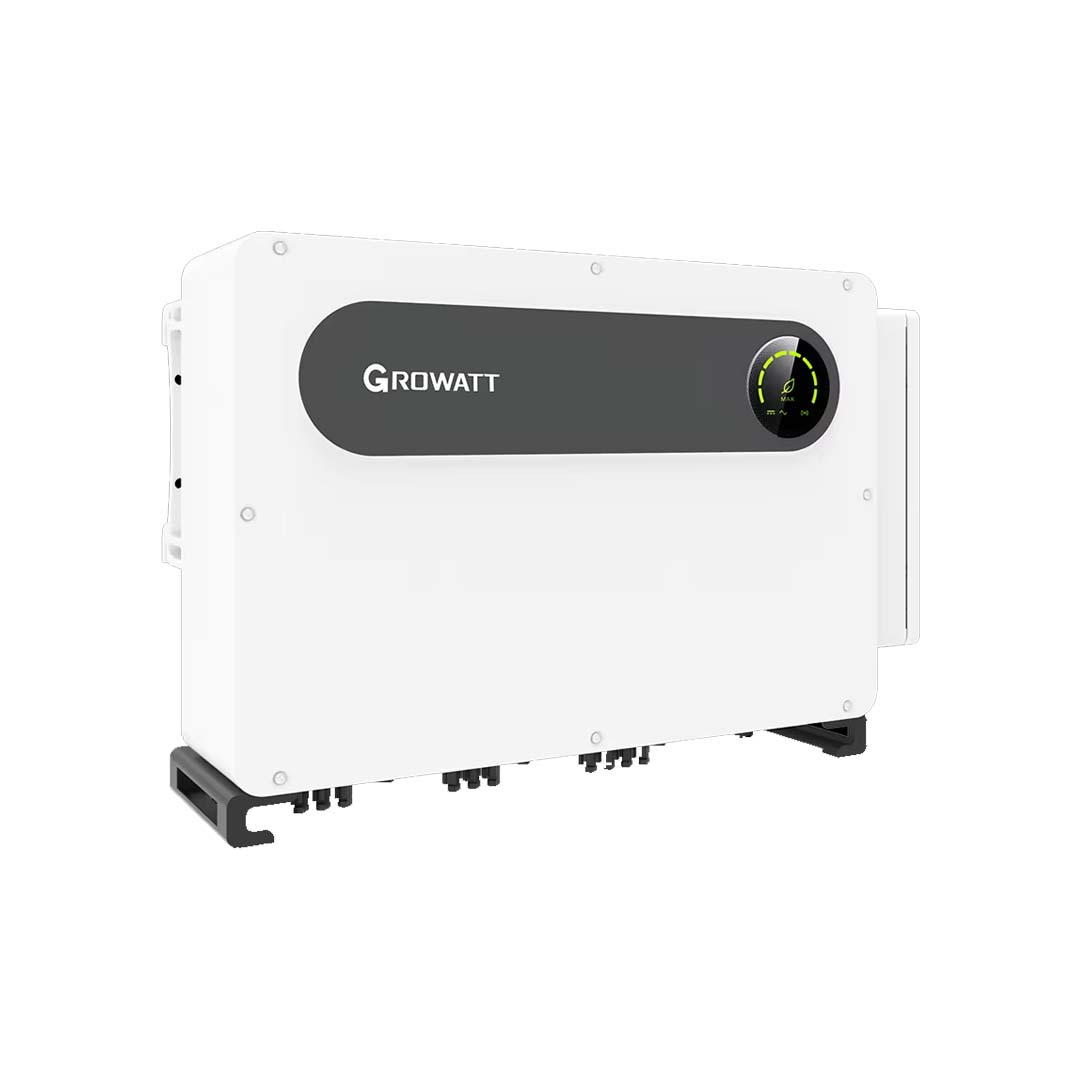

Growatt MAX 125 KTL3 LV | 125~KW 3-Phase On-Grid industrial Solar Inverter

The Growatt MAX 125 KTL3-X LV is a three-phase solar inverter ideal for both residential and commercial applications. Its main role is to convert the direct current (DC) electricity generated by solar panels into alternating current (AC) electricity for use in homes and businesses. With a focus on high efficiency, this inverter ensures maximum power output from solar panels, even under challenging conditions like shading, dust, or extreme temperatures. It features advanced MPPT (Maximum Power Point Tracking) technology, which continuously adjusts the electrical load to optimize energy production from the solar panels.

This inverter also includes a built-in data logger and WiFi connectivity, enabling users to monitor and manage their solar system’s performance remotely via a smartphone app or web portal. The app provides real-time and historical data, including energy production, consumption, and savings, making it easier to understand and optimize energy usage. Additionally, the Growatt MAX is designed for easy installation and maintenance, thanks to its compact and lightweight construction. It is built with durable, high-quality materials to ensure long-term reliability and performance.

Key Features:

*Multiple MPPTs design, up to 10 MPPTs *Compatible with high power modules *DC/AC ratio up to 1.5 *Optional AFCI protection *Type II SPD on both DC and AC sides *IP66 protection rating *Supports AI and Cu AC cables *DC 2-in-1 connection *Optional PLC communication *Comprehensive warranty plan *10-year warranty

Specifications:

*Maximum DC Voltage: 11000V *Nominal Voltage: 600V *Maximum Output Current: 198.5A *AC Nominal Power: 125000W *Dimensions (W/H/D): 970/640/345 mm *Weight: 84 kg *Maximum Efficiency: 98.8% *Protection Degree: IP66 *Interfaces: RS232/RS485/CAN/USB *Cooling: Smart air cooling *Topology: Transformerless
