GROWATT MID 15 KTL3-X | 15~KW 3-Phase On-Grid Solar inverter

Description:

The Growatt MID 15 KTL3-X is a cost-effective, high-quality three-phase inverter designed for both residential and commercial applications. Certified for
the global market, it is frequently used in pro-consumer installations. This inverter can be paired with Smart Energy Manager devices for self-consumption
monitoring and offers flexible CTs for different system sizes with high control accuracy. It includes a failsafe function to ensure system safety and
reliability, as well as a 0 export limit function.

This inverter is equipped with a variety of advanced features that simplify installation and usage. Its user-friendly interface allows homeowners and
installers to monitor system performance and adjust settings as needed. It is compatible with multiple monitoring systems, including WiFi, Ethernet,
and RS485.

Key Features:

*Two MPPT inputs
*AC/DC Type II lightning protection
*Built-in protections against material wear and arcing (AFCI)
*IP65 rating for outdoor installation
*Remote monitoring of photovoltaic panels and power grid by qualified installers
*Full integration with the ShinePhone app for PV installation management
*Durable touchscreen, tested for over 20,000 clicks
*Lightweight, durable, and fireproof polycarbonate cover

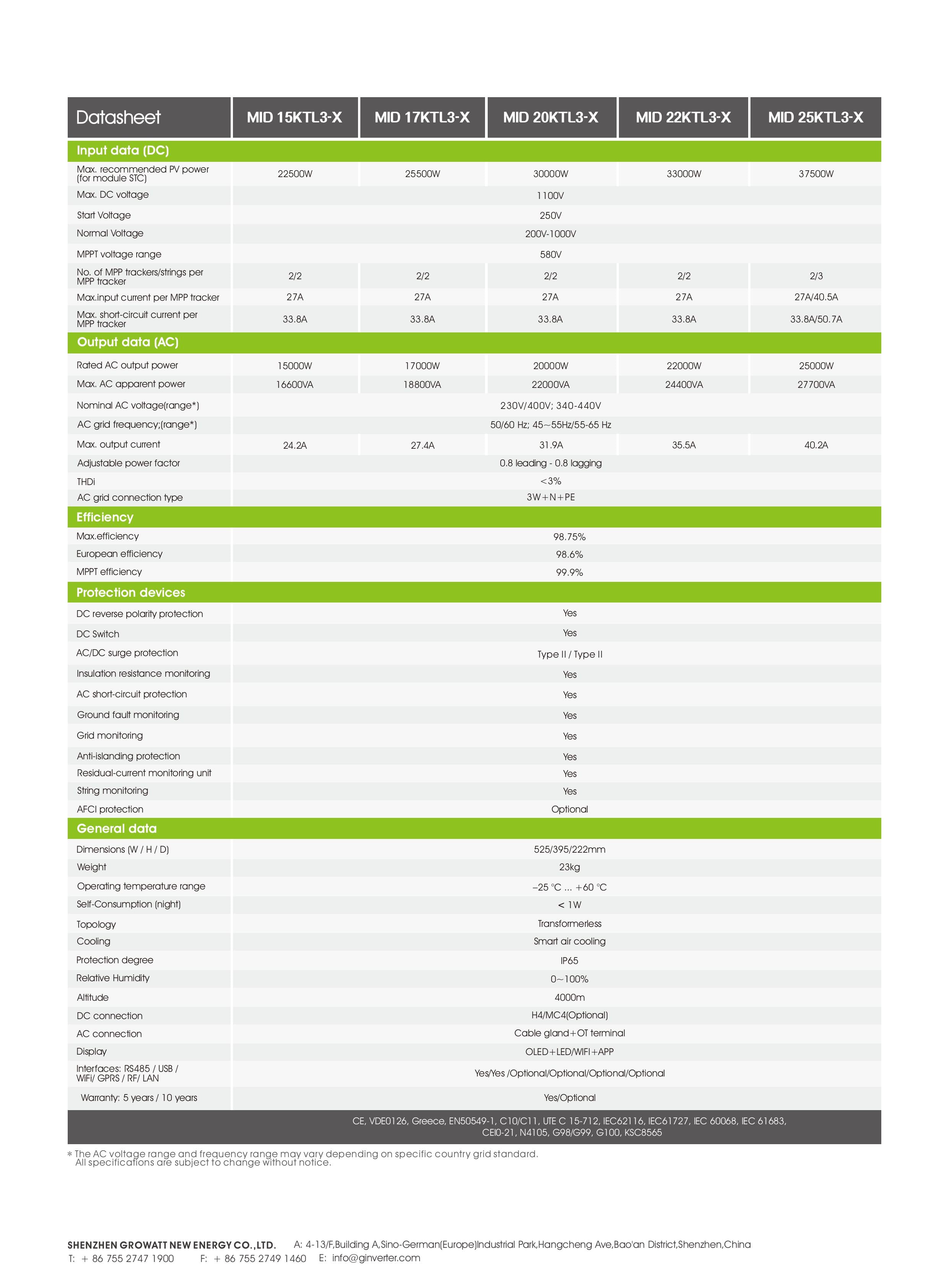

Specifications:

*Maximum Recommended PV Power: 22500W
*Maximum DC Voltage: 1100V
*Nominal Voltage: 580V
*AC Nominal Power: 15000W
*Maximum Output Current: 24.2A
*Dimensions (W/H/D): 525/395/222 mm
*Weight: 23 kg
*Maximum Efficiency: 98.75%
*Protection Degree: IP65
*Interfaces: RS232/RS485/CAN/USB
*Cooling: Smart air cooling
*Topology: Transformerless
