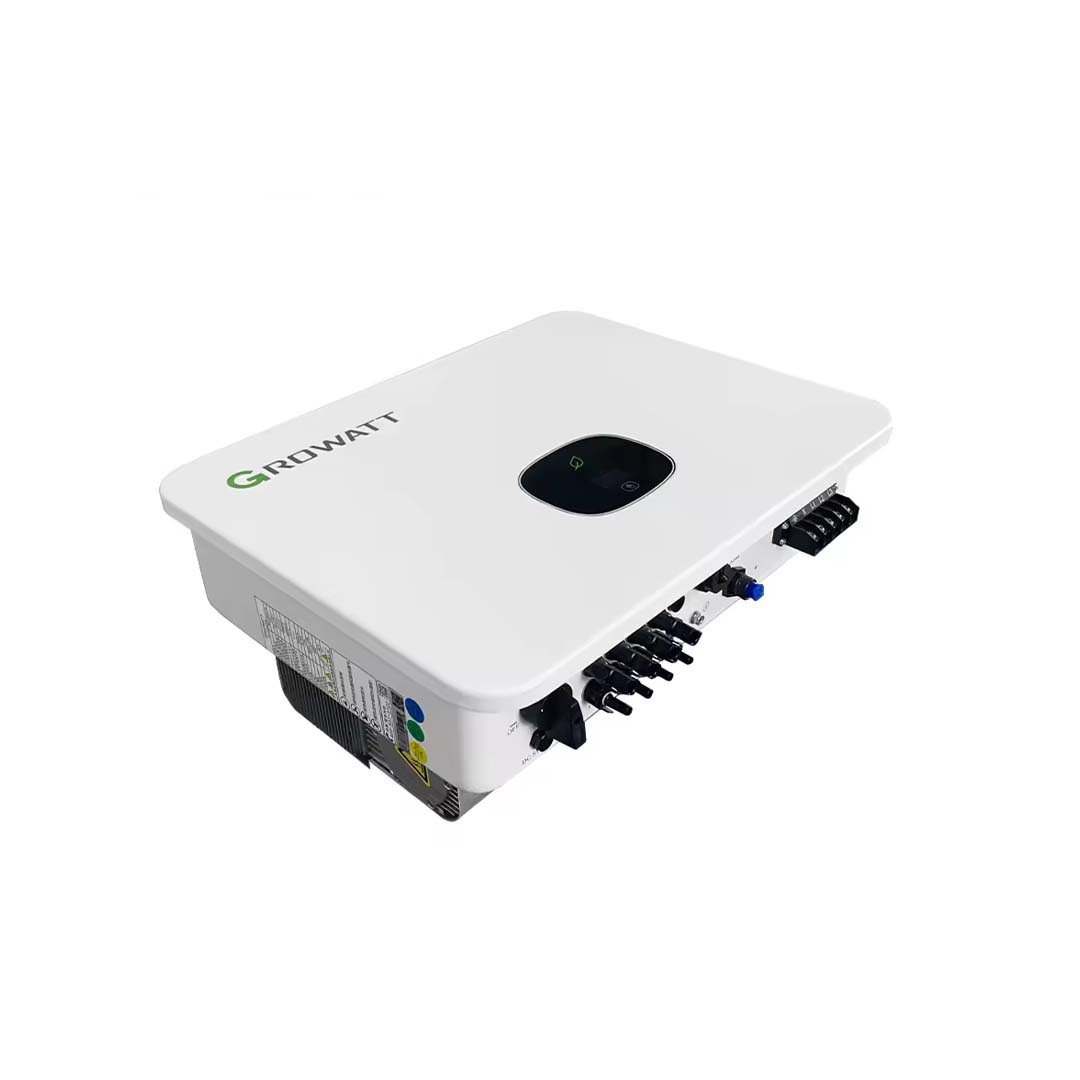

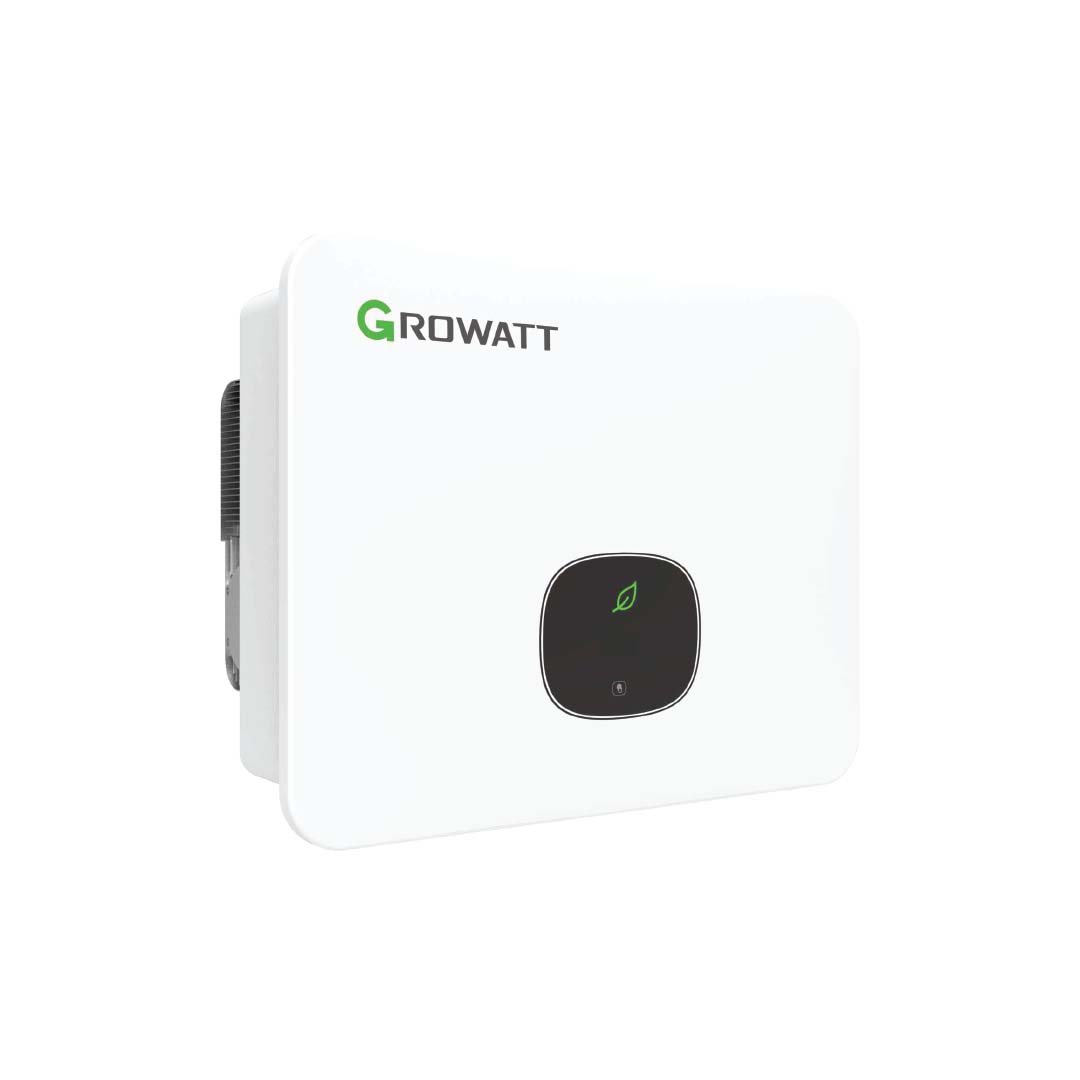

GROWATT MID 20 KTL3-X | 20~KW 3-Phase On-Grid Solar inverter

Description:

dential and commercial use. Certified for the global market, it is commonly used in pro-consumer installations. This inverter can be paired with Smart
Energy Manager devices for self-consumption monitoring and provides flexible CTs for various system sizes with high control accuracy. It includes a
failsafe function to ensure system safety and reliability, along with a 0 export limit function.

This inverter is available in multiple capacities. It boasts a range of advanced features that make installation and usage straightforward. Its
user-friendly interface allows homeowners and installers to monitor system performance and adjust settings as needed. Additionally, the inverter
is compatible with various monitoring systems, including WiFi, Ethernet, and RS485.

Key Features:

*Two MPPT inputs
*AC/DC Type II lightning protection
*Built-in protections against material wear and arcing (AFCI)
*IP65 rating for outdoor installation
*Remote monitoring of photovoltaic panels and power grid by qualified installers
*Full integration with the ShinePhone app for PV installation management
*Durable touchscreen, tested for over 20,000 clicks
*Lightweight, durable, and fireproof polycarbonate cover

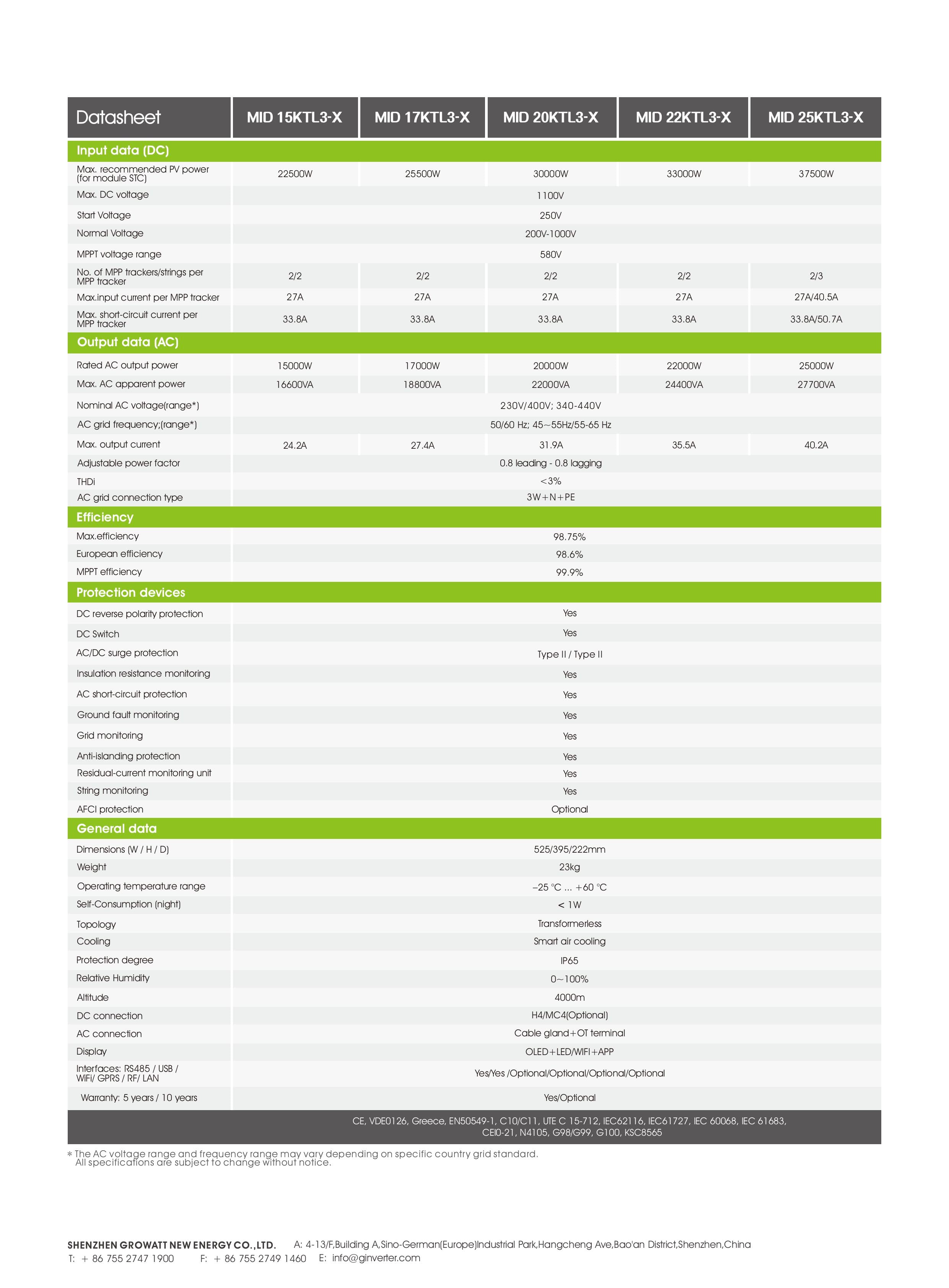

Specifications:

*Maximum Recommended PV Power: 30000W
*Maximum DC Voltage: 1100V
*Nominal Voltage: 580V
*AC Nominal Power: 20000W
*Maximum Output Current: 41.9A
*Dimensions (W/H/D): 525/395/222 mm
*Weight: 23 kg
*Maximum Efficiency: 98.75%
*Protection Degree: IP65
*Interfaces: RS232/RS485/CAN/USB
*Cooling: Smart air cooling
*Topology: Transformerless
