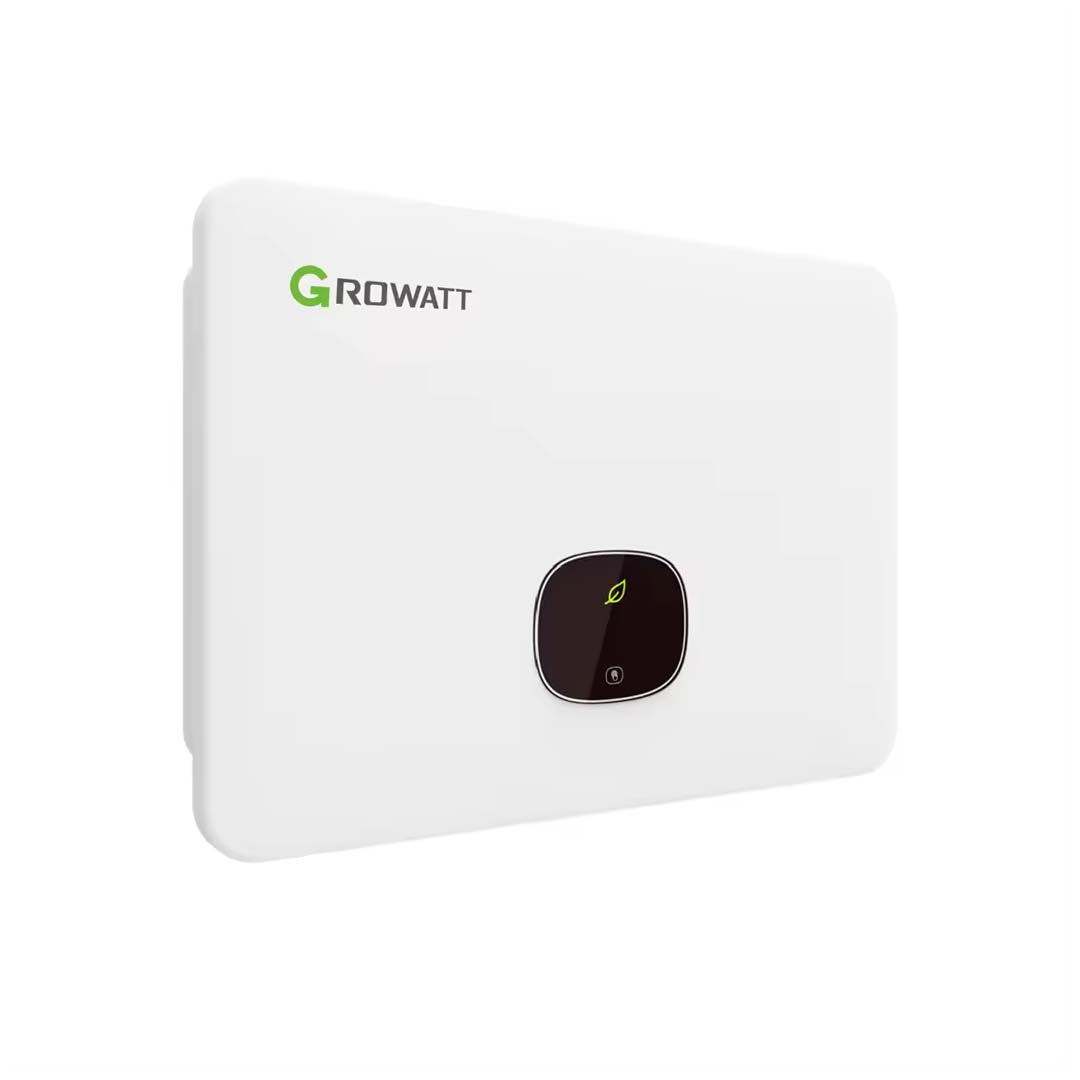

GROWATT MID 30 KTL3-X | 30~KW 3-Phase On-Grid Solar inverter

Description:

The Growatt MID 30 KTL3-X is a high-quality, cost-effective three-phase inverter designed for residential and commercial applications. Certified for
the global market, it is widely used in pro-consumer installations. This inverter can be paired with Smart Energy Manager devices for self-consumption
monitoring and offers flexible CTs for various system sizes with high control accuracy. It includes a failsafe function to ensure system safety and
reliability, as well as a 0 export limit function.

This inverter is equipped with numerous advanced features that simplify installation and use. Its user-friendly interface allows homeowners and
installers to monitor system performance and adjust settings as needed. Additionally, the inverter is compatible with a variety of monitoring systems,
including WiFi, Ethernet, and RS485.

Key Features:

*Three MPPT inputs
*AC/DC Type II lightning protection
*Built-in protections against material wear and arcing (AFCI)
*IP66 rating for outdoor installation
*Remote monitoring of photovoltaic panels and power grid by qualified installers

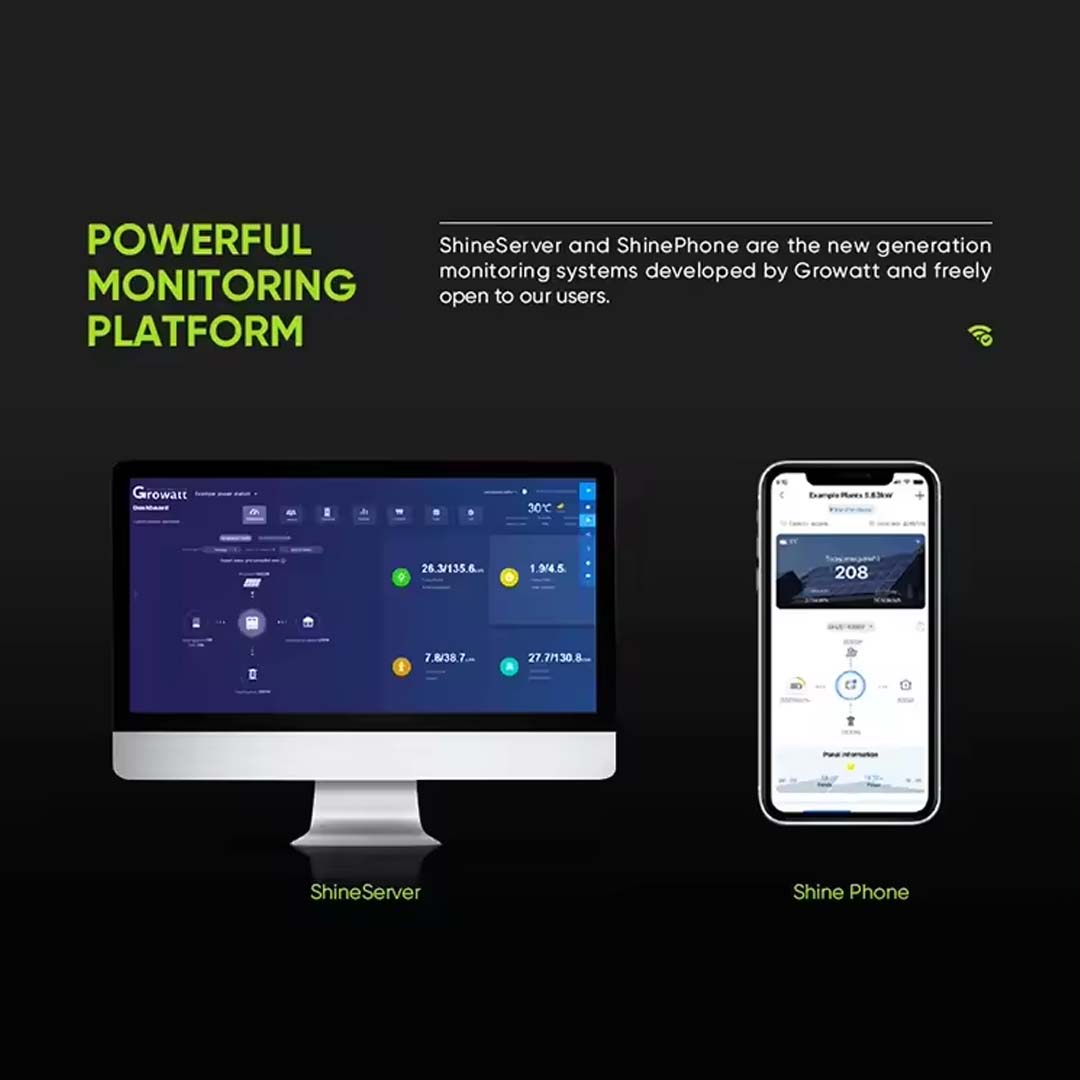

*Full integration with the ShinePhone app for PV installation management
*Durable touchscreen, tested for over 20,000 clicks
*Lightweight, durable, and fireproof polycarbonate cover

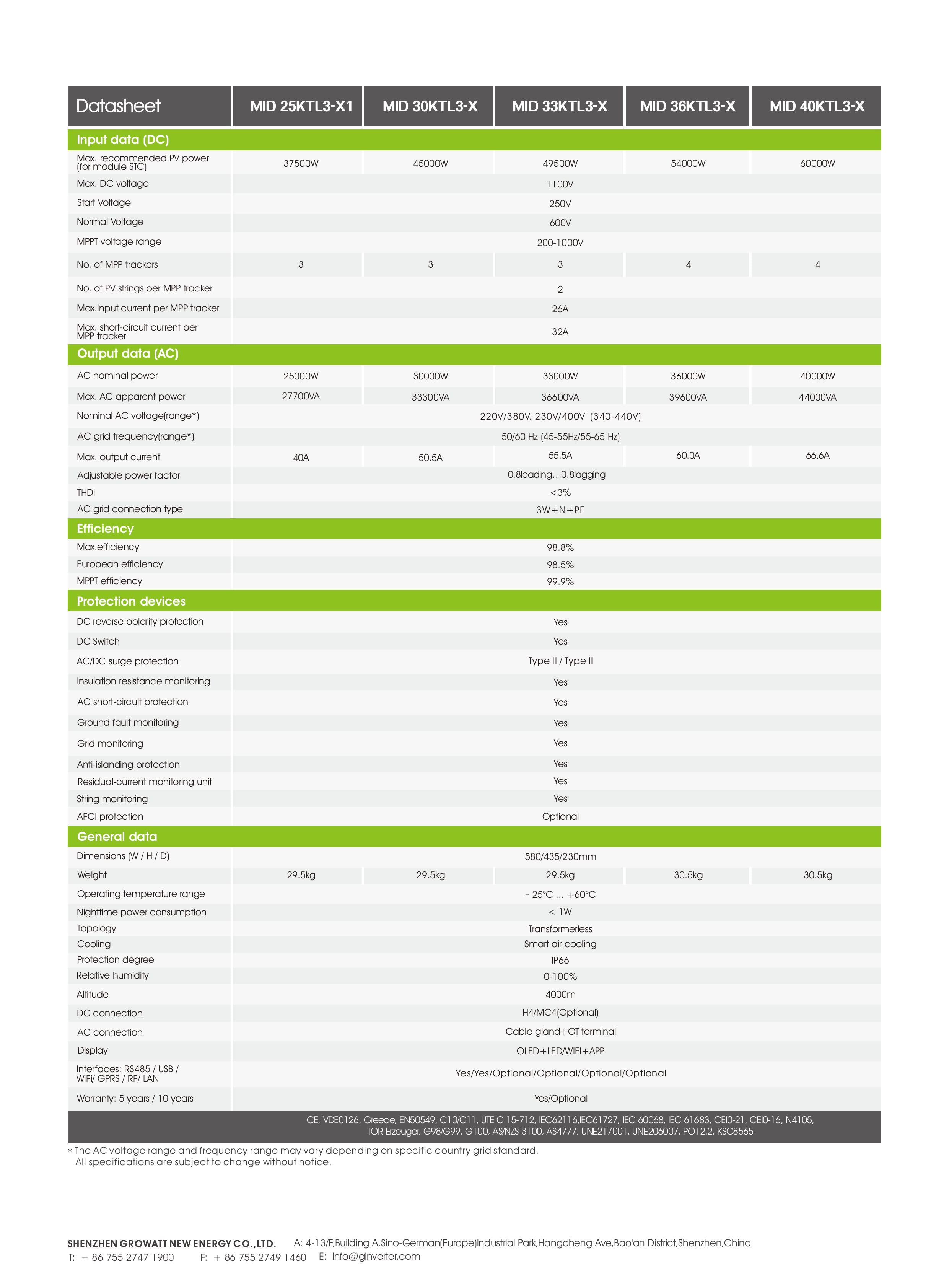

Specifications:

*Maximum Recommended PV Power: 45000W
*Maximum DC Voltage: 1100V
*Nominal Voltage: 600V
*AC Nominal Power: 30000W
*Maximum Output Current: 50.5A

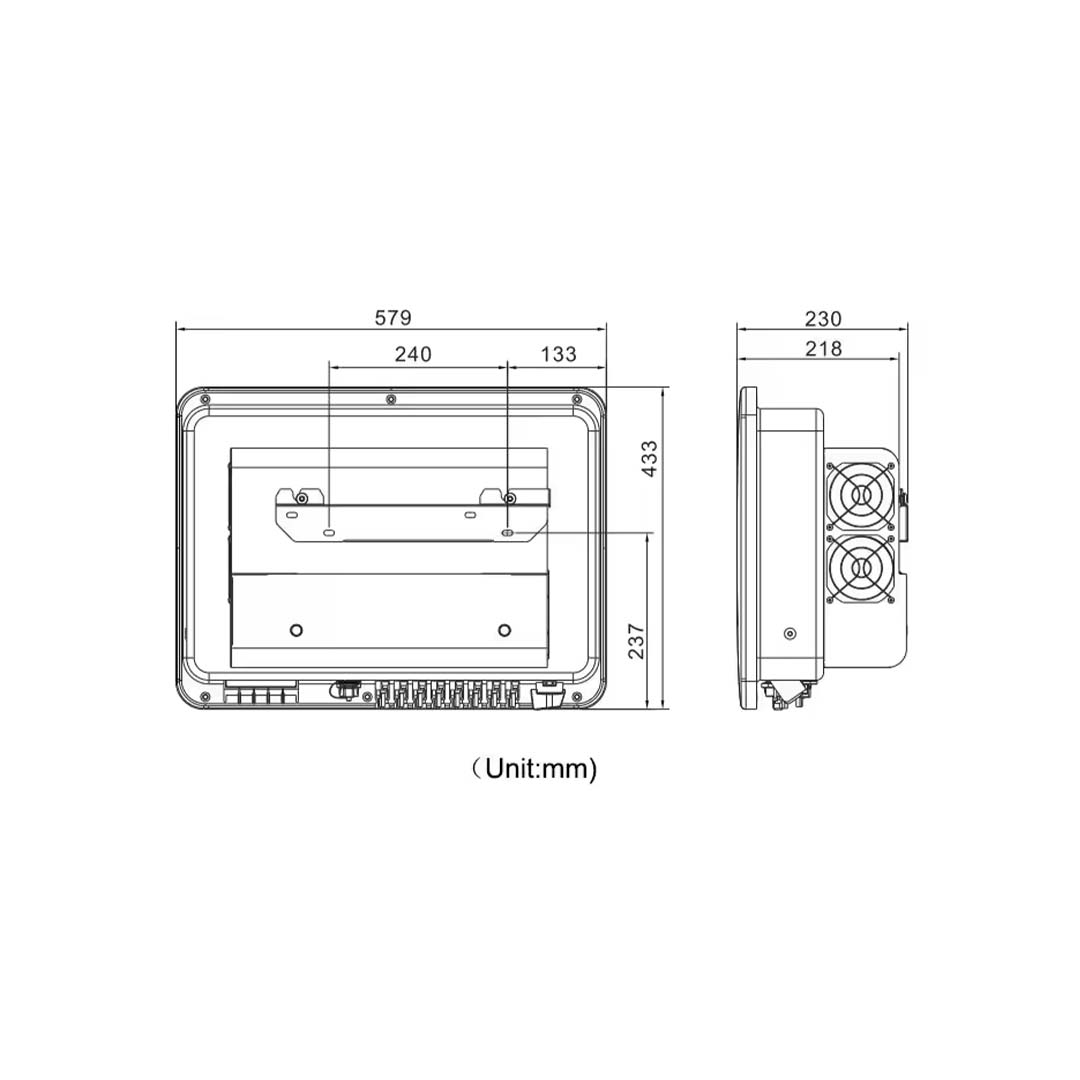

*Dimensions (W/H/D): 580/435/230 mm
*Weight: 29.5 kg
*Maximum Efficiency: 98.8%
*Protection Degree: IP66
*Interfaces: RS232/RS485/CAN/USB
*Cooling: Smart air cooling
*Topology: Transformerless
