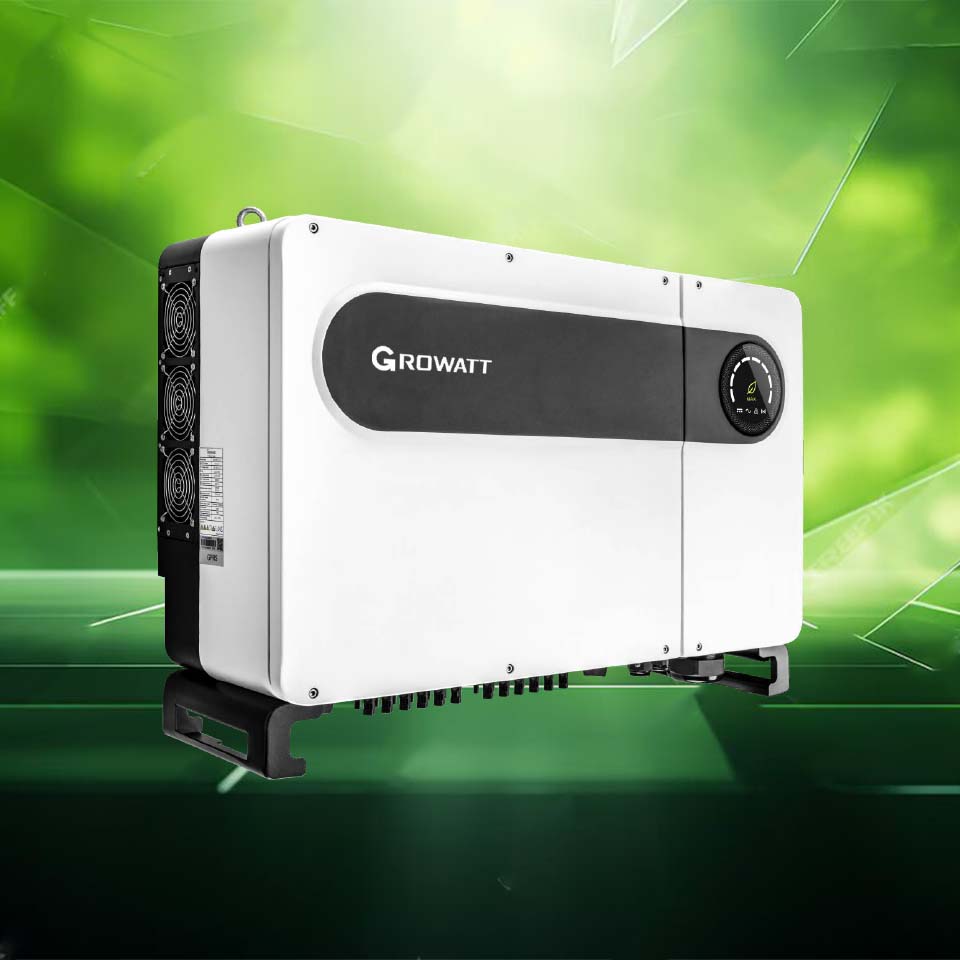

GROWATT MID 50 KTL3-X | 50~KW 3-Phase On-Grid Solar inverter

Description:

The Growatt MID 50 KTL3-X is a high-quality, cost-effective three-phase inverter suitable for residential and commercial applications. Certified for the
global market, it is widely used in pro-consumer installations. The inverter can be paired with Smart Energy Manager devices for self-consumption monitoring
and offers flexible CTs for various system sizes with precise control. It includes a failsafe function to ensure system safety and reliability and features
a 0 export limit function.

This inverter boasts an array of advanced features that simplify installation and usage. Its user-friendly interface allows homeowners and installers to
monitor system performance and adjust settings as needed. Additionally, the inverter is compatible with multiple monitoring systems, including WiFi,
Ethernet, and RS485.

Key Features:

*Four MPPT inputs
*AC/DC Type II lightning protection
*Built-in protections against material wear and arcing (AFCI)
*IP66 rating for outdoor installation
*Remote monitoring of photovoltaic panels and power grid by qualified installers
*Full integration with the ShinePhone app for PV installation management
*Durable touchscreen, tested for over 20,000 clicks
*Lightweight, durable, and fireproof polycarbonate cover

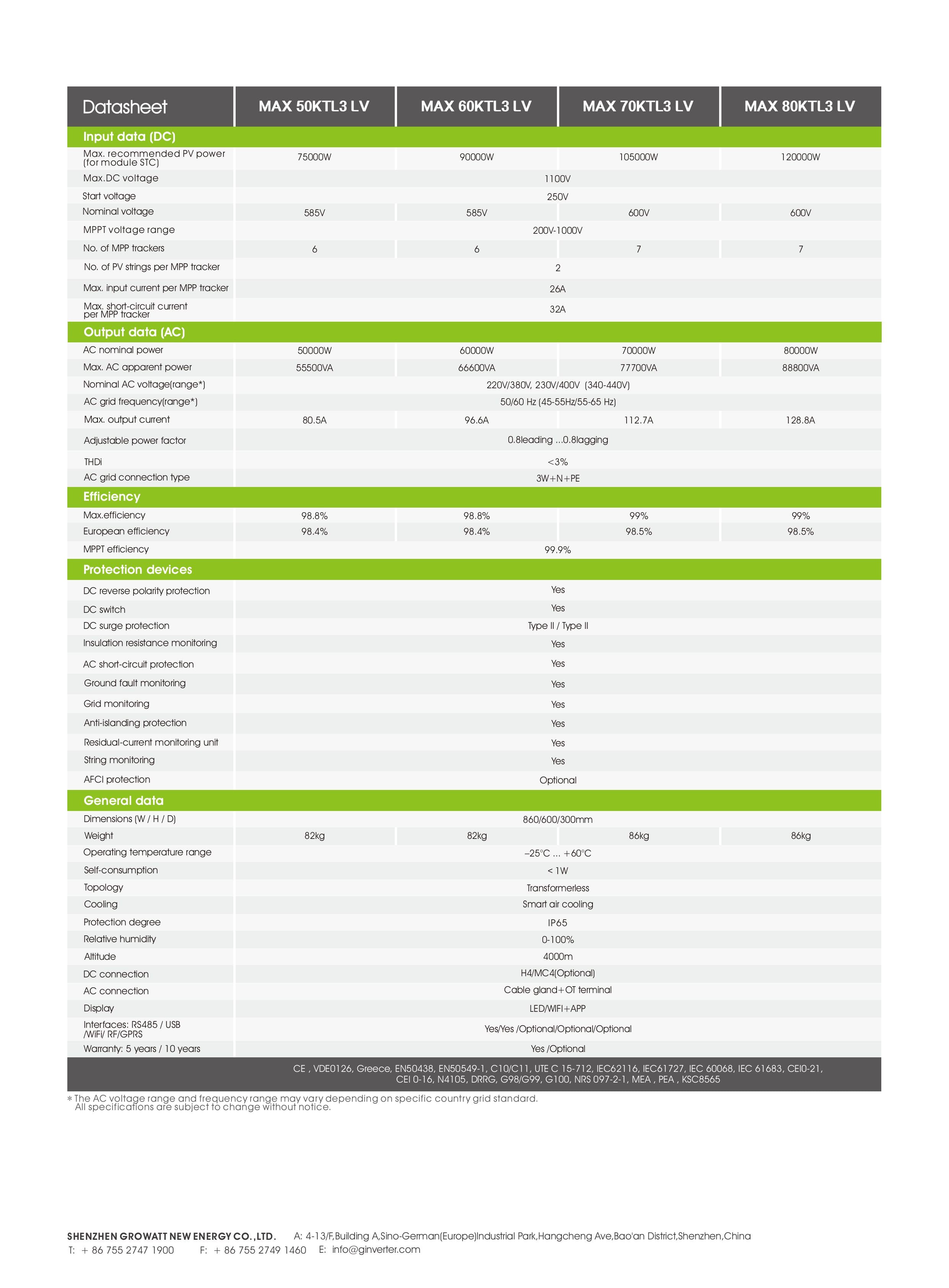

Specifications:

*Maximum Recommended PV Power (for module STC): 75000W
*Maximum DC Voltage: 1100V
*Nominal Voltage: 600V
*AC Nominal Power: 50000W
*Maximum Output Current: 67.3A
*Dimensions (W/H/D): 580/435/230 mm
*Weight: 37 kg
*Maximum Efficiency: 98.8%
*Protection Degree: IP66
*Interfaces: RS232/RS485/CAN/USB
*Cooling: Smart air cooling
*Topology: Transformerless
