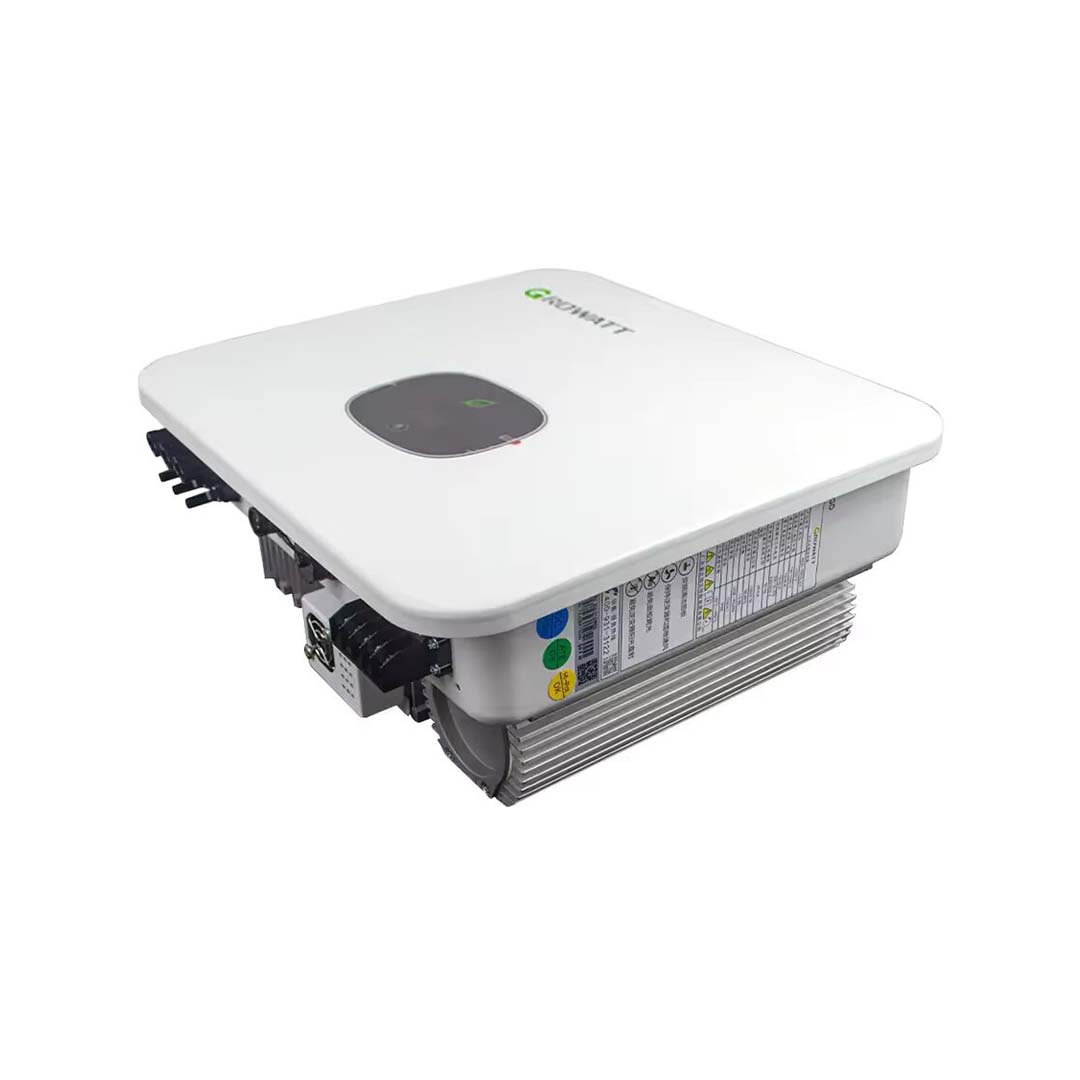

GROWATT MOD 10 KTL3-X | 10~KW 3-Phase On-Grid Solar inverter

Description:

The Growatt MOD 10 KTL3-X is a high-quality, cost-effective three-phase inverter designed for residential and commercial applications. Renowned for
its efficiency and reliability, this inverter is ideal for a variety of installations. Its primary function is to convert the direct current (DC)
electricity generated by solar panels into alternating current (AC) electricity that can be used to power homes and businesses.

Key Features:

*Future proof Battery Ready
*Touch key and OLED display
*Max. efficiency 98.6%
*Dual MPPTs
*DC/AC up to 2.0
*Type II SPD on AC&DC side
*Support export limitation
*AFCI function optional

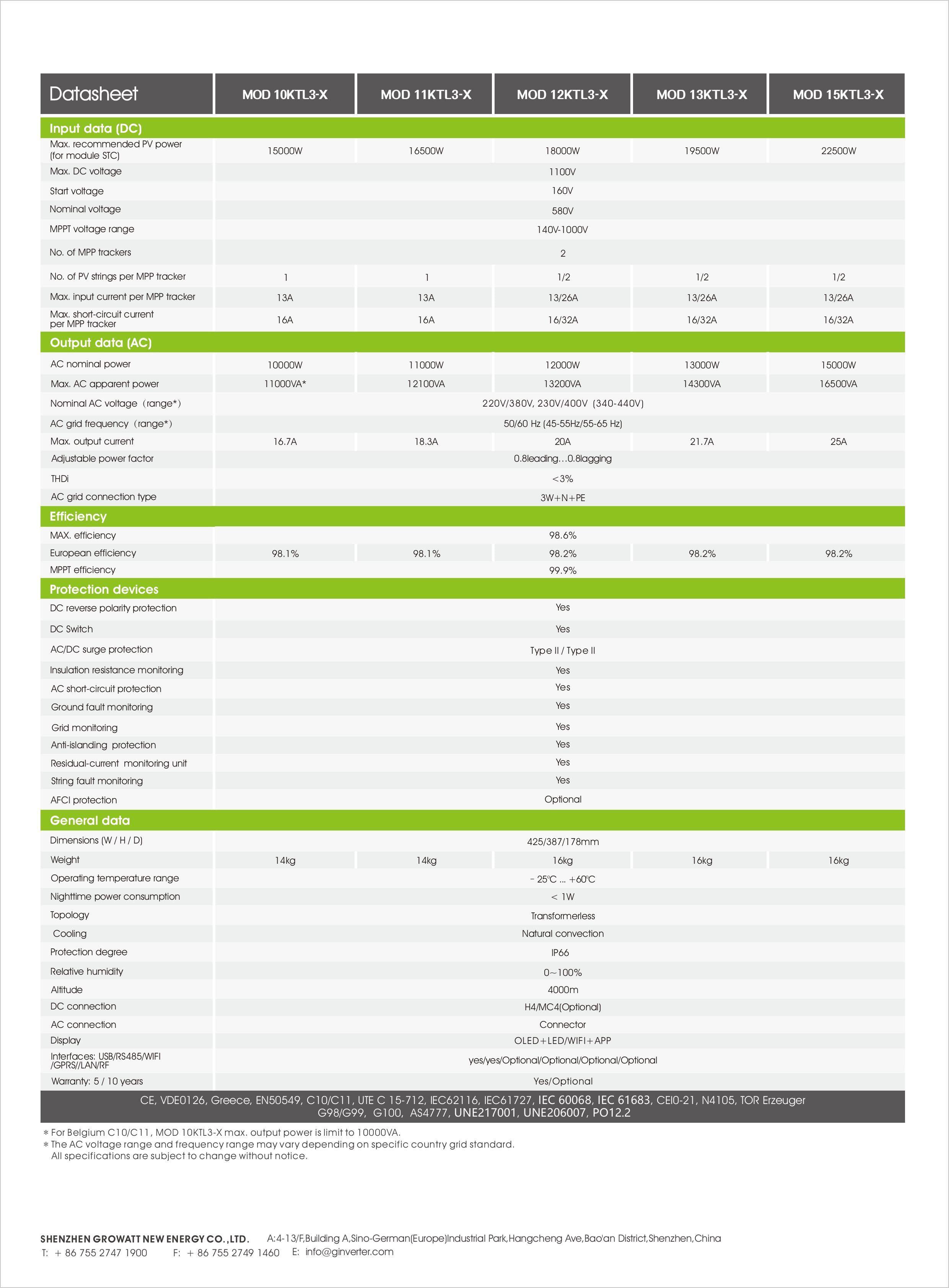

Specifications:

*Model: Growatt MOD 10 KTL3-X
*Max. Recommended PV Power: 15000W
*Max. DC Voltage: 1100V
*Nominal Voltage: 600V
*AC Nominal Power: 10000W
*Max. Output Current: 16.2A
*Dimensions (W/H/D): 525/395/222 mm
*Weight: 20 kg
*Max. Efficiency: 98.6%
*Protection Degree: IP66

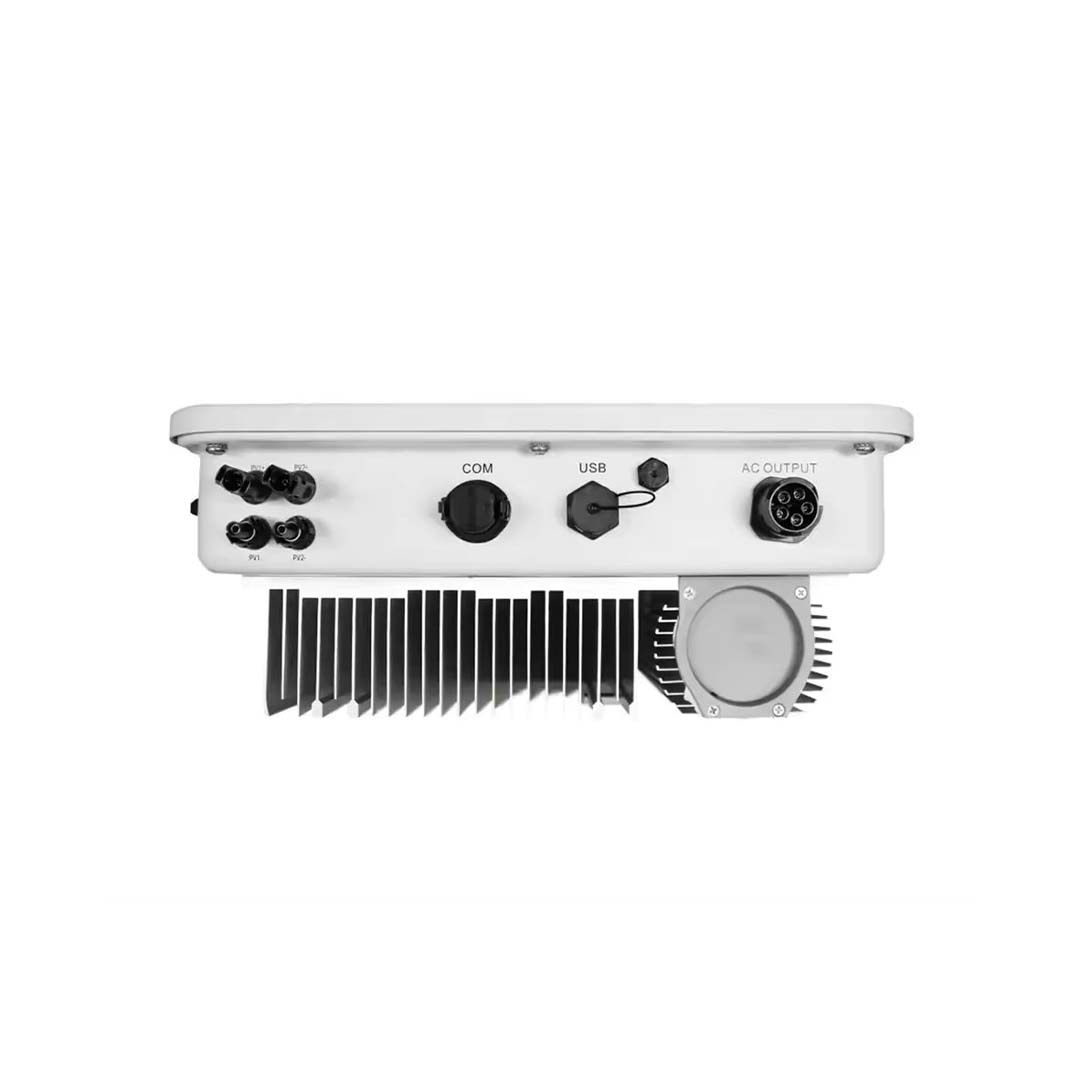

*Interfaces: RS232/RS485/CAN/USB
*Cooling: Smart air cooling
*Topology: Transformerless
